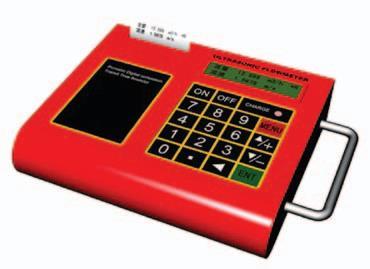

Portable Ultrasonic Flowmeter

Name: Portable Ultrasonic Flowmeter
Brand: FANTYSK

High-precision measurement: Measurement accuracy is better than ±1%, linearity is better than 0.5%, and repeatability is better than 0.2%.
Non-contact measurement: The magnetic ultrasonic flow meter sensor can be attached to the outer wall of the pipe to complete flow measurement.
Wide measurement range: By selecting different sensor models, flow measurement of pipes with diameters from DN15 to DN6000mm can be achieved.
Rechargeable power supply: Built-in large-capacity nickel-metal hydride rechargeable battery supports continuous operation of the flow meter for more than 204 hours.
Built-in printer: Allows for both instant screen printing and scheduled printing of up to 20 pre-set measurement results.
Built-in data logger: Up to 20 pre-set measurement results can be uploaded to a computer or networked communication system.

GET A QUOTE

Description

Technical parameters

Item	Performance & Parameters
Host	2×20 dot-matrix backlit LCD display, operating temperature: (-20 ~ 60°C) Printer output: 24-character micro thermal dot printer 4×4+2 light-touch keyboard Data interface: RS-485
Sensor	1. Standard TS-1 type: Applicable pipe diameter: DN15 ~ 100mm, fluid temperature < 110°C 2. Standard TM-1 type: Applicable pipe diameter: DN50 ~ 1000mm, fluid temperature < 110°C 3. Standard TL-1 type: Applicable pipe diameter: DN300 ~ DN6000mm, fluid temperature < 110°C
Measuring Medium	Liquids that can transmit sound waves, such as water, seawater, industrial sewage, acids/alkalis, various oils, etc.
Flow Velocity Range	0.1 ~ 12 m/s
Measurement Accuracy	Better than ±1%
Power Supply	Nickel-hydrogen battery (continuous operation for over 204 hours) or AC 220V
Power Consumption	2W
Charging	Intelligent charging: directly connect to AC 220V, automatically stops after full charge, and shows green light
Weight	Net weight: 2.0kg (host)
Remarks	Equipped with a high-strength protective case, suitable for harsh environments such as outdoors and underground mines
