Pressure generation range: (-0.098 to 4) MPa Accuracy: ±0.05%F·S Pressure measurement: -0.1 MPa to (0.04; 0.1; 0.25; 0.4; 0.6; 1; 2; 2.5; 4.0) MPa; Only one negative pressure and one positive pressure range can be selected. Minimum controllable adjustment: 10 Pa Current measurement: (0 to 25) mA Accuracy: ±0.02%RD + 0.003%F·S Voltage measurement: (0 to 25) V Accuracy: ±0.02%RD + 0.003%F·S Power supply: AC220V Dimensions: 300 × 200 × 280 mm

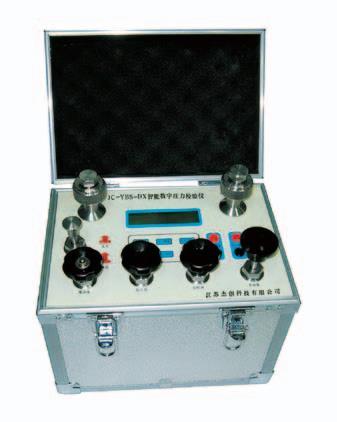

The JC-YBS-DX pressure and vacuum calibrator is a high-precision, multi-functional, and portable pressure calibrator that is widely used in industrial sites and laboratories across various industries. It can measure and generate pressure (vacuum) and electrical signals (mA, V), and also provides a 24V DC power supply. It is widely used in aerospace, power, petroleum, chemical, metallurgical, and other industries, and is one of the main pieces of equipment for calibrating pressure (vacuum) transmitters, sensors, ordinary (precision) pressure gauges, and other pressure instruments.
Product features ● Manual pressure adjustment, quick and effortless. ● Dual output interfaces allow simultaneous calibration of two instruments, saving time and effort. ● Integrates positive and negative pressure generation, facilitating easy switching between positive and negative pressure. ● Pressure, current, and voltage measurements all utilize digital calibration. ● Dual-row five-digit dot matrix character display with built-in power supply. ● Two power supply options: AC 220V and built-in rechargeable Ni-MH battery, convenient for field use. ● Equipped with an RS232 interface for online data processing.
