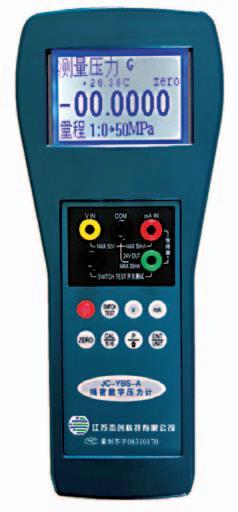

JC-YBS-A Precision Digital Pressure Gauge

Name: JC-YBS-A Precision Digital Pressure Gauge
Brand: FANTYSK

It features a built-in six-digit high-precision DC digital voltmeter and ammeter, with current and voltage measurement accuracy of ±(0.01%R.D + 0.005%F.S). Using imported low-temperature drift current sensing and voltage dividing resistors, it ensures current and voltage measurement accuracy within the 0-50℃ range.
It has an RS-232 or RS-485 interface for communication with a host computer, transmitting real-time measurement data to dedicated calibration software. This allows for data recording, automatic table generation, automatic error calculation, and storage and printing of calibration data. It can calibrate pressure transmitters, analog pressure gauges, pressure switches (pressure controllers), etc.
Dimensions: 235mm × 96mm × 55mm.

GET A QUOTE

Description

The JC-YBS-A precision digital pressure gauge is a multi-functional instrument that, in addition to measuring pressure, can also measure ±25mADC current or ±50VDC voltage, perform pressure switch testing, and automatically record pressure switch values. It features maximum and minimum value recording functions and has a 24VDC output, which can be used as a power supply for 4-20mA two-wire transmitters. This intelligent digital pressure calibrator can be used as a high-accuracy calibration standard instrument and also as a field calibration instrument. It is widely used in metallurgy, petroleum, chemical, power, natural gas, metrology, and scientific research departments.

Intelligent Digital Pressure Module and Pressure Range Selection Table (Custom ranges available upon request)

Model	Range	Accuracy	Model	Range	Accuracy
DPM01	-100 ~ 0KPa	0.05% F·S 0.02% F·S	DPM15	0 ~ 600KPa	0.05% F·S 0.02% F·S
DPM02	-100 ~ 100KPa		DPM16	0 ~ 1MPa
DPM03	-60 ~ 60KPa		DPM17	0 ~ 1.6MPa
DPM04	-25 ~ 25KPa		DPM18	0 ~ 2MPa
DPM05	-10 ~ 10KPa		DPM19	0 ~ 2.5MPa
DPM06	-6 ~ 6KPa		DPM20	0 ~ 4MPa
DPM07	-4 ~ 4KPa		DPM21	0 ~ 6MPa
DPM08	0 ~ 25KPa		DPM22	0 ~ 10MPa
DPM09	0 ~ 40KPa		DPM23	0 ~ 16MPa
DPM10	0 ~ 60KPa		DPM24	0 ~ 20MPa
DPM11	0 ~ 100KPa		DPM25	0 ~ 25MPa
DPM12	0 ~ 160KPa		DPM26	0 ~ 30MPa
DPM13	0 ~ 250KPa		DPM27	0 ~ 40MPa
DPM14	0 ~ 400KPa		DPM28	0 ~ 60MPa
