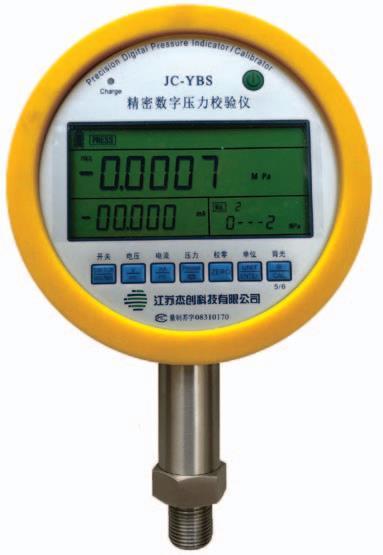

JC-YBS-150 Intelligent Digital Pressure Calibrator
Features a built-in six-digit high-precision DC digital voltmeter and ammeter.
Equipped with RS-232 or RS-485 interface for communication with a host computer, transmitting real-time measurement data to dedicated calibration software. This allows for data recording, automatic table generation, automatic error calculation, and storage and printing of calibration data. It can be used to calibrate pressure transmitters, analog pressure gauges, and pressure switches (pressure controllers).
Dimensions: Dial diameter 150mm, aluminum alloy casing, with a silicone rubber protective cover.
The J C-YB S intelligent digital pressure calibrator is a multi-functional instrument that can measure pressure, ±30mA DC current, or ±50V DC voltage simultaneously. It also features pressure switch testing and automatic recording of pressure switch values, with maximum and minimum value recording functions. It has a 24V DC output, which can be used as a power supply for 4-20mA two-wire transmitters. Besides serving as a high-accuracy calibration standard instrument, the intelligent digital pressure calibrator can also be used as a field calibration instrument, and is widely used in metallurgy, petroleum, chemical, power, natural gas, metrology, and scientific research departments.
Intelligent Digital Pressure Module Selection Table (Special ranges can be customized)
