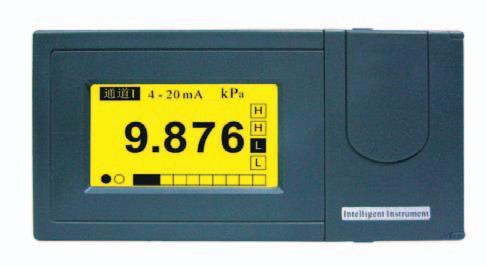

The J C-X J-1000 three-channel universal input paperless recorder can accept standard current, standard voltage, frequency, millivolt, thermocouple, and RTD signals. It features sensor isolated power distribution output, relay alarm output, transmitter output, flow accumulation, temperature and pressure compensation, historical data storage, printing, and remote communication functions. Through wired or wireless communication networking, it can be integrated with professional configuration software such as MCGS, Citect, iFIX, and KingView to form a remote monitoring system. It has a standard USB 2.0 interface and supports USB flash drive data transfer. The instrument uses a 32-bit ARM microprocessor and boasts powerful display functions, including real-time trend curve display, historical curve recall, over-limit alarms, alarm status display, and intelligent automatic historical trend playback. Finding alarm points is extremely convenient, and it also provides a positioning playback function, allowing direct retrieval of data for a specific year, month, day, hour, minute, and second, making data access quick and easy.
Functional features
The display screen is equipped with temperature compensation and automatically adjusts the contrast.
High-speed, high-performance 32-bit ARM microprocessor, with a picture response time of less than 0.2 seconds, real-time detection, display, recording and alarm.
The large-capacity FLASH memory chip stores historical data, and the data will never be lost after power failure.
It can input multiple signals without jumpers and can be configured.
The quantity of work can display a 5-digit value :-9999 to 19999.
Support scientific counting method display for vacuum degree.
The Chinese configuration menu and software password lock ensure the security of user configuration.
The alarm display can indicate the upper limit, upper upper limit, lower limit and lower lower limit alarms of each channel. It can record the most recent 15 alarm messages.
Use the USB2.0 interface to transfer and back up historical records, supporting 256MB, 512MB and 1GB USB flash drives.
The standard Modbus RTU communication protocol not only supports our company's ScanX data management software, but also lFix, Kingview, MCGS, etc.
Popular professional configuration software, no dedicated driver required.
It can be connected to a micro printer externally, supporting manual printing and timed automatic printing, meeting the on-site printing needs of users.
Integrated hardware real-time clock, ensuring accurate operation even in the event of power failure.
Provide transmitter +24VDC isolated power distribution.
