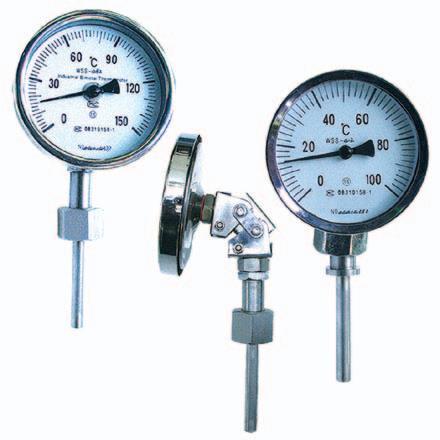

WSS Bimetallic Thermometer

Name: WSS Bimetallic Thermometer
Brand: FANTYSK

● Displays temperature on-site, providing a clear and convenient reading.
● Safe and reliable, with a long service life.
● Available in various structural forms to meet different requirements.

GET A QUOTE

Description

Bimetallic thermometers are field instruments used for measuring low to medium temperatures. They can directly measure the temperature of liquid, steam, and gaseous media in various production processes within the range of -80℃ to +500℃.

Working Principle
A bimetallic thermometer is based on a bimetallic strip wound into a circular, curved shape. When one end is heated and expands, it causes the pointer to rotate, and the instrument then displays the temperature value corresponding to the thermoelectric potential.

Main Technical Parameters
● Product Standards: JB/T8803-1998; GB38369-83
● Nominal Dial Diameter: 60, 100, 150
● Accuracy Class: (1.0), 1.5
● Thermal Response Time: ≤ 40s
● Protection Class: IP55
● Angle Adjustment Error: The angle adjustment error shall not exceed 1.0% of its range.
● Hysteresis: The thermometer hysteresis shall not be greater than the absolute value of the basic error limit.
● Repeatability: The repeatability limit range of the thermometer shall not be greater than 1/2 of the absolute value of the basic error limit.
● Temperature Measurement Range:

Temperature Measurement Range (°C)	Application Scope
	Industrial, Commercial	Laboratory, Small-Scale
-80 ~ +40	✓	✓
-40 ~ +80	✓	✓
0 ~ 50	✓	✓
0 ~ 100	✓	✓
0 ~ 150	✓	✓
0 ~ 200	✓	✓
0 ~ 300	✓	✓
0 ~ 400	✓	—
0 ~ 500	✓	—
