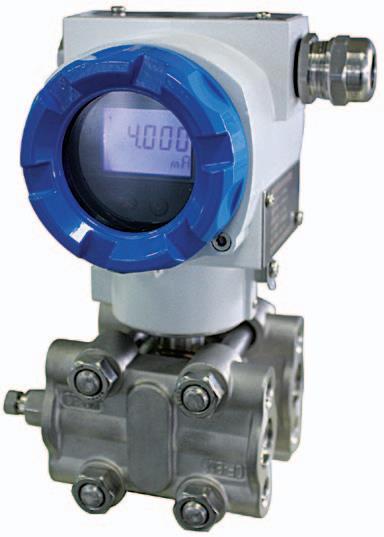

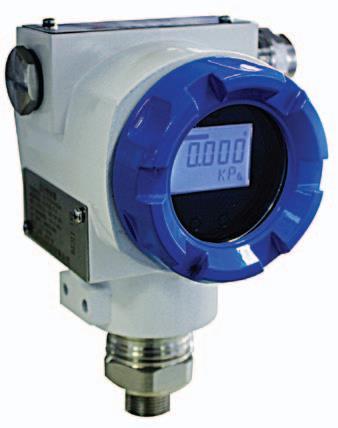

JC-G Series Single-Crystal Silicon Intelligent Pressure/Differential Pressure Transmitter

Load Resistance: 250~600Ω (DC 24V, including cable resistance)
Load Capacitance: Below 0.55mF
Load Inductance: Below 3.3mH
Power Line Spacing: 15cm or more
EMC Applicable Standard: EN1326-1:2006
Alarm Current: Upper limit 22.8mA, Lower limit 3.6mA (Mode is configurable)

Description

The JC-G series intelligent single-crystal silicon pressure/differential pressure transmitter utilizes an advanced MEMS technology single-crystal silicon sensor chip from Germany and a globally unique single-crystal silicon dual-beam suspension design, achieving internationally leading high accuracy, superior overpressure performance, and excellent stability. It incorporates a German signal processing module, perfectly combining static pressure and temperature compensation, providing extremely high measurement accuracy and long-term stability under a wide range of static pressure and temperature variations. The transmitter accurately measures pressure/differential pressure and converts it into a 4-20mA DC output signal. This transmitter can be operated locally via three buttons, or remotely using a universal handheld communicator, configuration software, or a mobile app, allowing for display and configuration without affecting the 4-20mA DC output signal.

Product List

Item	JC-G-DR Series Differential Pressure Transmitter JC-G-DP Series High Pressure Transmitter JC-GP Series Flush Diaphragm Pressure Transmitter	JC-G-CP Series Direct Mount Pressure Transmitter JC-G-P Series Flange Mount Pressure Transmitter	JC-G Series Flange Mount Pressure Transmitter
Type	High stability, flush diaphragm pressure	High stability, direct mount/flange mount pressure	High stability, flange installation
Process Connection	1/4NPT female thread 1/2NPT female thread M20×1.5 male thread	G1/2 male thread 1/2NPT male thread M20×1.5 male thread	User-specified flange installation
Range	S1: 1 ~ 6kPa S2: 6 ~ 1kPa M1: 40 ~ 100kPa M2: 100 ~ 400kPa M3: 200 ~ 1000kPa L1: 4 ~ 20MPa L2: 40 ~ 40MPa	M1: 0 ~ 40kPa M2: 0 ~ 100kPa M3: 0 ~ 400kPa L1: 0 ~ 4MPa L2: 0 ~ 40MPa	M1: 0 ~ 40kPa M2: 0 ~ 100kPa M3: 0 ~ 400kPa L1: 0 ~ 4MPa L2: 0 ~ 40MPa
Single-Side/ Double-Side Overpressure	S1: 1MPa S2: 2MPa M1: 3MPa M2: 8MPa M3: 10MPa L1: 10MPa L2: 40MPa	M1: 4MPa M2: 10MPa M3: 40MPa L1: 20MPa L2: 60MPa	M1: 4MPa M2: 10MPa M3: 40MPa L1: 20MPa L2: 60MPa
Wetted Material	Hastelloy C-276 SUS316L Gold	SUS316L Hastelloy C-276 SUS316L Gold	SUS316L Hastelloy C-276 SUS316L Gold
Accuracy	0.075%FS	0.075%FS	0.075%FS
Seal	Fluororubber, nitrile rubber, PTFE	Oil	Oil
Fill Fluid	Silicone oil Oil Vegetable oil	Silicone oil Oil Vegetable oil	Silicone oil Oil Vegetable oil
