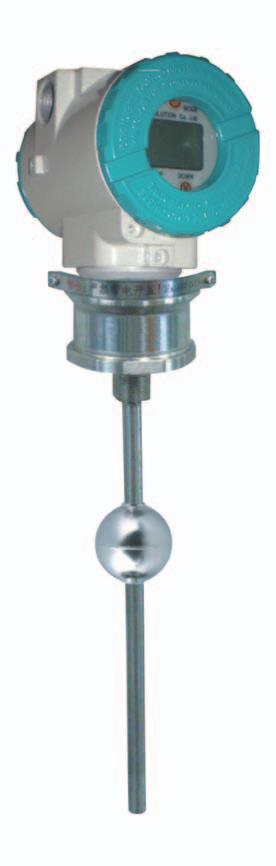

The JC-5SL709 two-wire output magnetostrictive level sensor is another series of level sensors independently developed by our company using the magnetostrictive principle and combining advanced digital and analog circuits. This product features high measurement accuracy, stable and reliable operation, on-site display with a meter head, a compact structure, simple installation, and strong resistance to power and environmental interference, offering excellent flexibility and adaptability to various environments. The JC-5SL709 magnetostrictive level meter is available in the following three models: 709-A with a resolution of 0.25mm, basic accuracy of 1.0mm, and a green backlit LCD display + HART; 709-B with a resolution of 0.1mm, basic accuracy of 0.5mm, and a green backlit LCD display + HART; and 709-C with a resolution of 0.01mm, basic accuracy of 0.5mm, four-wire system + MODBUS-485.
Functional features
It can be equipped with a display head for on-site display.
Suitable for intrinsically safe applications; lightning protection included.
Strong anti-interference ability, stable measurement values, and good repeatability.
Easy to calibrate, and no repeated calibration is required after initial calibration.
The external measuring rod does not directly contact the process medium (only the float contacts the liquid), therefore it can measure high-temperature media.
