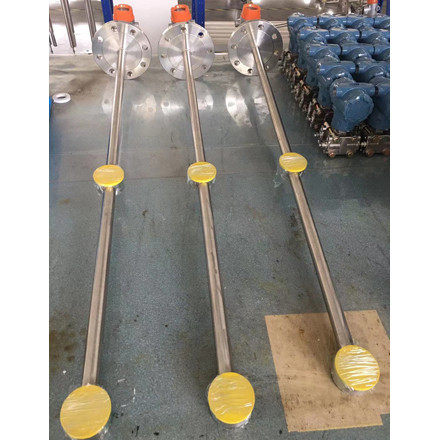

The YT-DMF series liquid online density transmitter is a device for continuously measuring liquid density online and can be directly used in industrial production processes. Based on Archimedes' principle, it utilizes electronic technology, specifically a capacitive differential pressure sensor and its connections, with a pair of pressure-sensitive diaphragms inserted into the process. A temperature sensor is placed between the two diaphragms to compensate for temperature changes in the process fluid. Dedicated software calculates the density of the measured medium. This product employs internationally advanced technology and uses high-quality domestic components, significantly enhancing product stability while reducing investment costs for businesses.
Product features
The two-wire transmitter with an integrated structure has no moving parts
Four-and-a-half-digit LCD display
The only instrument for measuring density and concentration that uses two-wire power supply, 12 to 45Vcc
It adopts 4-20mA and Hart communication
Digital communication provides remote monitoring and verification (Palm and PC)
Online remote re-calibration, readings of several engineering units and digital local display
Suitable for both flowing and static liquids
Intrinsically safe and flameproof
Technical indicators
Density range: 0-1g/cm ³; 0-2 g/cm3; 0-3 g/cm ³ (optional)
Output: 4-20mA current output, digital signal output is optional (HART protocol)
Power supply: 16-30Vdc power supply, 24Vdc is recommended
Accuracy: 0.001g/cm ³
Resolution: 0.001g /cm ³
Medium temperature range: 0-100℃(optional
Temperature accuracy: 0.2℃
Ambient temperature range: 0-80℃(optional)
Humidity range: 0-90%
Application industry
Sugar industry and brewing industry: extracting fruit juice, syrup, grape juice, etc., alcohol GL degree, ethane-ethanol interface, etc
